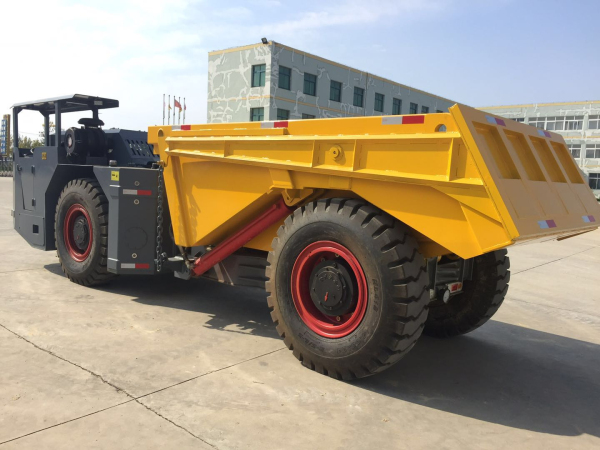

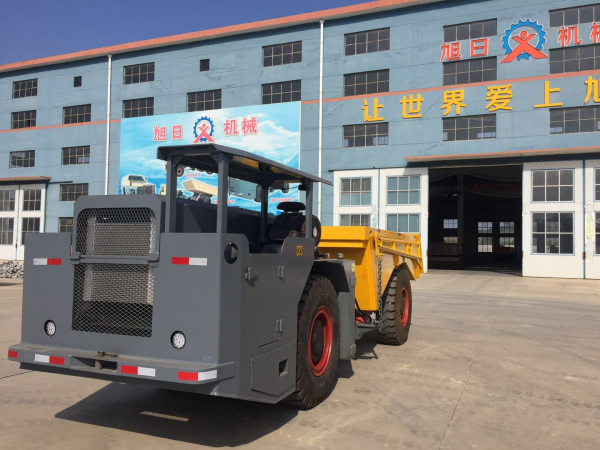

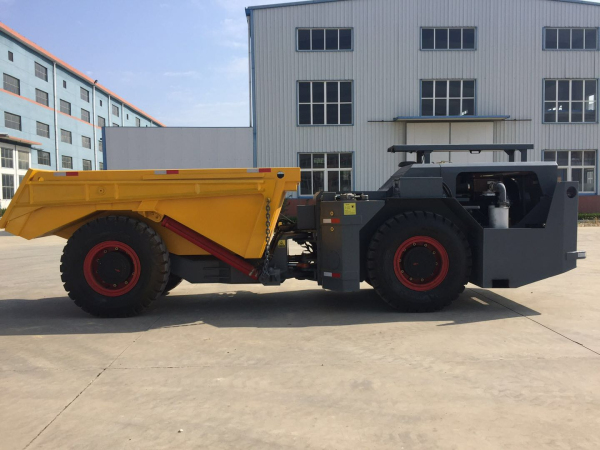

UK-12 Low Profile Dump Truck

UK-12 Low profile dumper truck is a wheeled transporting equipment designed for underground mining. It works together with LHD underground wheel loader for transporting mine ores and other materials.

UK-12 adopts diesel engine, four wheel drive, rear dump wagon box, central articulation framework with big steering angle and small turning radius; it is suitable for tunnel section no less than3.5mx3.5m.

Advantage and Characteristics:

● Power system: Cummins GBIII low speed big torque water-cooled low pollution diesel engine;

● Power transfer system：Integrated transmission and spring-brake hydraulic release drive axles, mining cut-resistance inflation tires, four wheel drive;

● Hydraulic components: famous brakes like MICO charging valve, brake valve etc.;

● Chassis: central articulated framework, swinging frame for front and rear axles, sealed cabin;

● Rear dump wagon box with big lifting angle, easy for dumping mine ores and other materials；

● All hydraulic hoses, electric cables are sealed with fire-resistance tubes to give protection for explosion or fire;

MACHINE LAYOUT
